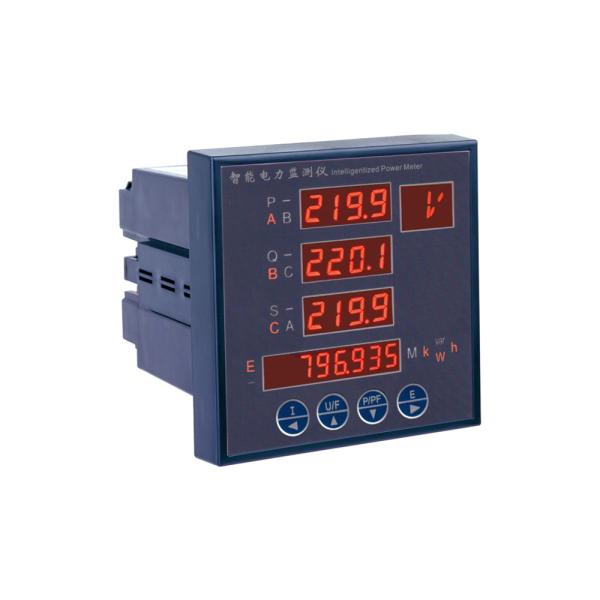

LED Display Mini Digital Panel Ethernet Power Meter Analog Output Module

Name: LED Display Mini Digital Panel Ethernet Power Meter Analog Output Module
Brand: GFUVE
Price: 1 USD

Brand Name : GFUVE

Model Number : FU2030

Certification : CE

Place of Origin : Beijing , China (Mainland)

MOQ : 1 Piece

Price : Negotiable

Payment Terms : Western Union, T/T, L/C

Supply Ability : 2000 Pieces per Month

Packaging Details : Standard export carton

Power supply (AC/DC) : AC 85-265V/DC 85-330V

Measuring Range : 30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1

Connection Mode : RS-485 interface port , 32 (128) Networking, ModBus-RTU communication protocol.

Harmonics : 3rd-19th

Accuracy class : 0.5

Display : LED Display, 4 Displays. 4 operation keys.

Contact Now

High Quality Multifunction LED Display Mini Digital Panel Power Meter / Power Analyzer Meter

FU2030 is a multifunction mini digital panel power meter, measure all the electrical parameters, compute four quadrants energy, work in wide temperature range.

FEATURES

Multifunction digital panel power meter
Work in wide temperature range
Multiple connection modes
Measure all the electrical parameters
Analog output module is optional

PARAMETERS

Electrical parameters
Power Supply (AC/DC)	AC 85-265V/DC 85-330V Power consumption: <6VA
Measurement Parameters	Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power (W); Reactive Power (Q); Apparent Power (S)
Computation	Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy
Measuring Range	30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1
Measuring Accuracy	Frequency: 0.1% Electric energy: 0.5%, 1.0% Voltage : 0.2%±0.1V Current : 0.2%±0.001A Power : 0.5% ±0.4W Power Factor : 0.5% ±0.001
Display	LED Display, 4 Displays. 4 operation keys.
Communication	RS-485 interface port support, 32 (128) Networking, ModBus-RTU communication protocol.
Analog Output (Expansion module)	DC 4-20mA output, programmable to any measured parameters.
Programmable	Measuring System : 3P4W/3P3W etc. Transformation Ratio : PT, CT. Communication: Address: 1~247; Baud: 1200~19200; Parity Bit: N/E/O Energy: Reset
Energy pulse (optional)	One active energy pulse output Pulse constant: 5000kWh Photocoupler output (0.1Ax30V)
Connection Mode	3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W
RTC	Accuracy drift less than 2.5min/year
Mechanical parameters
Dimensions (mm)	Mounting Panel: 120x120 Thickness: 21 Depth: 118
Mounting	Panel mounting Trepanning: 92x92mm
Environmental conditions
Temperature	-25 to +55 °C
Humidity	20%-95%RH, without condensation
